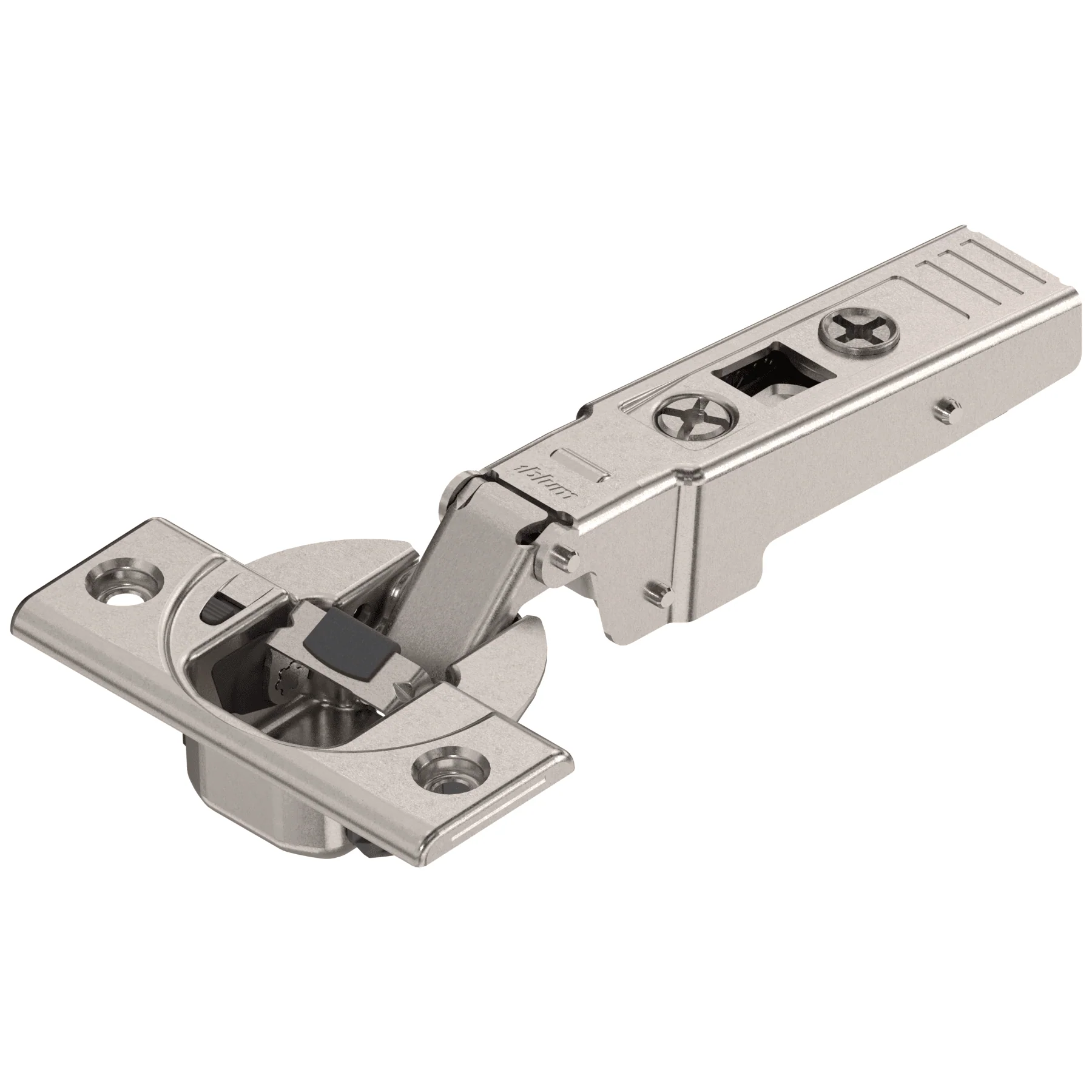

Blum Cliptop Soft Close 95° Hinge Sprung N.P. Nickel 71B3550

Product image 1
1 / 5

Blum Cliptop Soft Close 95° Hinge Sprung N.P. Nickel 71B3550

CLIP top BLUMOTION standard hinge 95°, overlay application, boss: screw-on

The tried and tested Blumotion hinge range offers the absolute best in class soft closing cabinet hinges. With the incredible blumotion mechanism, you can decide between soft closing and not depending on the weight of your cabinet door.

The Blumotion system is fully integrated to the hinge.

  • CLIP top standard hinge
  • BLUMOTION
  • Part Number: 71B3550
  • Item Number: 09349303
  • Colour/Finish: Nickel Plated
  • Opening angle: 95°

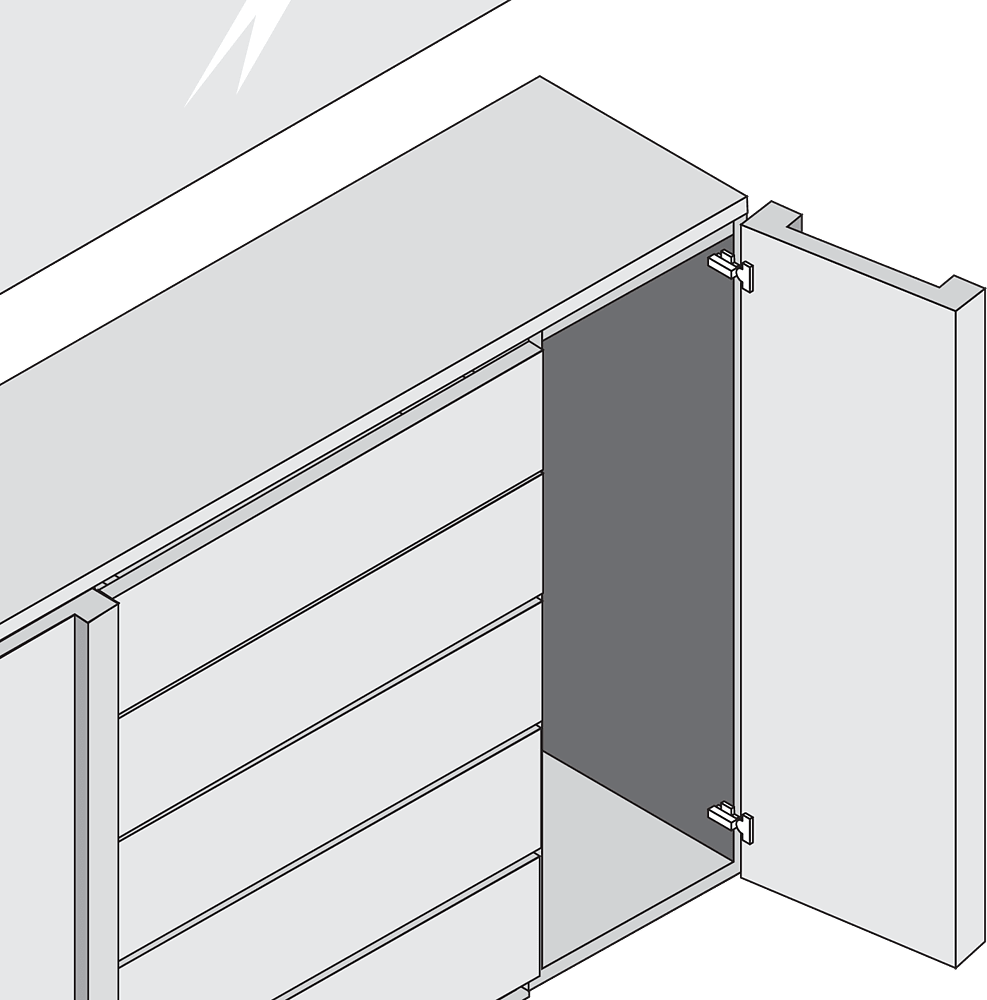

  • Cranking: Overlay application
  • Boss assembly: screw-on
  • Boss material: Steel boss
  • Closing mechanism: with spring

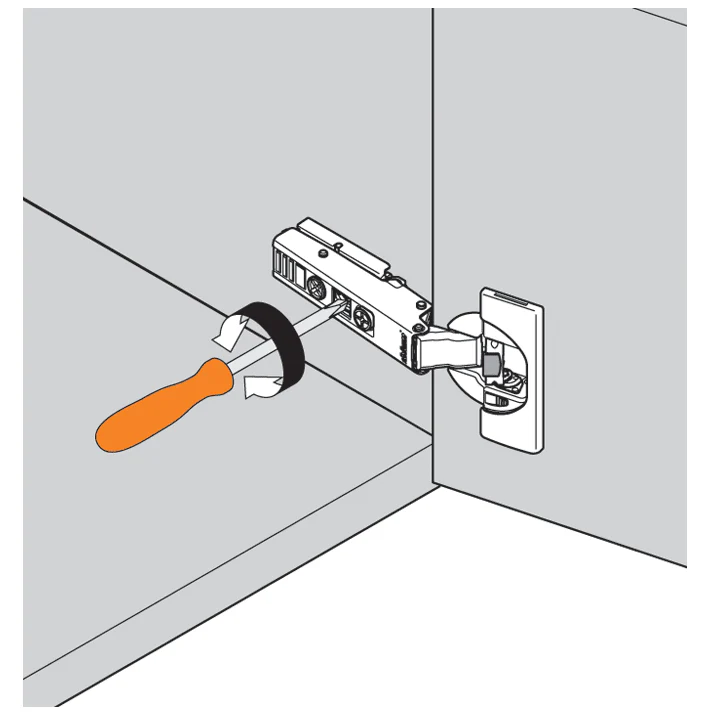

  • Side adjustment: +/- 2 mm

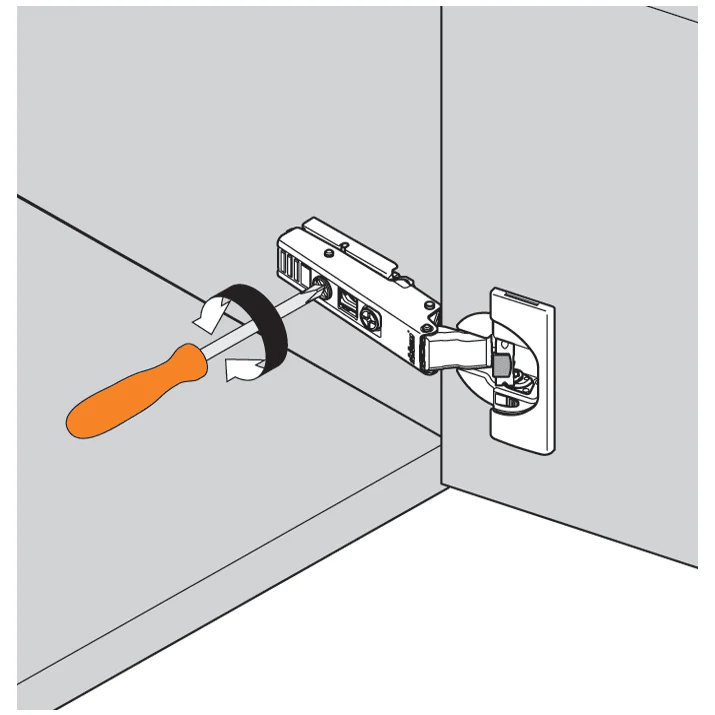

  • Depth adjustment: + 3/- 2 mm, convenient with spiral screw
  • Lifetime Guarantee provided by Blum

Mounting plates sold separately.
Screws not included.

application profile door hinge
Cranking Overlay application
Opening angle 95
Closing mechanism with spring
hinge variant With integrated BLUMOTION
Cover cap type 90M2503
Cover cap type 70.1553
Cover cap type 70T3504 – boss cover cap
Boss material Steel boss
boss finish Nickel plated
Boss assembly screw-on
Flange width 57
Flange length 22
Flange height 3.2
diametre hinge boss drilling 35
distance between drillings 45
exccentric position of fixing holes to hinge boss hole 9.5
boss drilling depth 13
Minimum drilling distance 3
Maximum drilling distance 7
arm material Steel
arm finish Nickel plated
collision measurement (hinge arm height) 22
Fixed dimension / factory setting 11
Type of side adjustment With screw
Side adjustment +/- 2 mm
Type of depth adjustment convenient with spiral screw
Depth adjustment + 3/- 2 mm
Gap 1.5
Item package 1 piece
packaging industrial packing

CLIP top BLUMOTION standard hinge 95°, overlay application, boss: screw-on

The tried and tested Blumotion hinge range offers the absolute best in class soft closing cabinet hinges. With the incredible blumotion mechanism, you can decide between soft closing and not depending on the weight of your cabinet door.

The Blumotion system is fully integrated to the hinge.

  • CLIP top standard hinge
  • BLUMOTION
